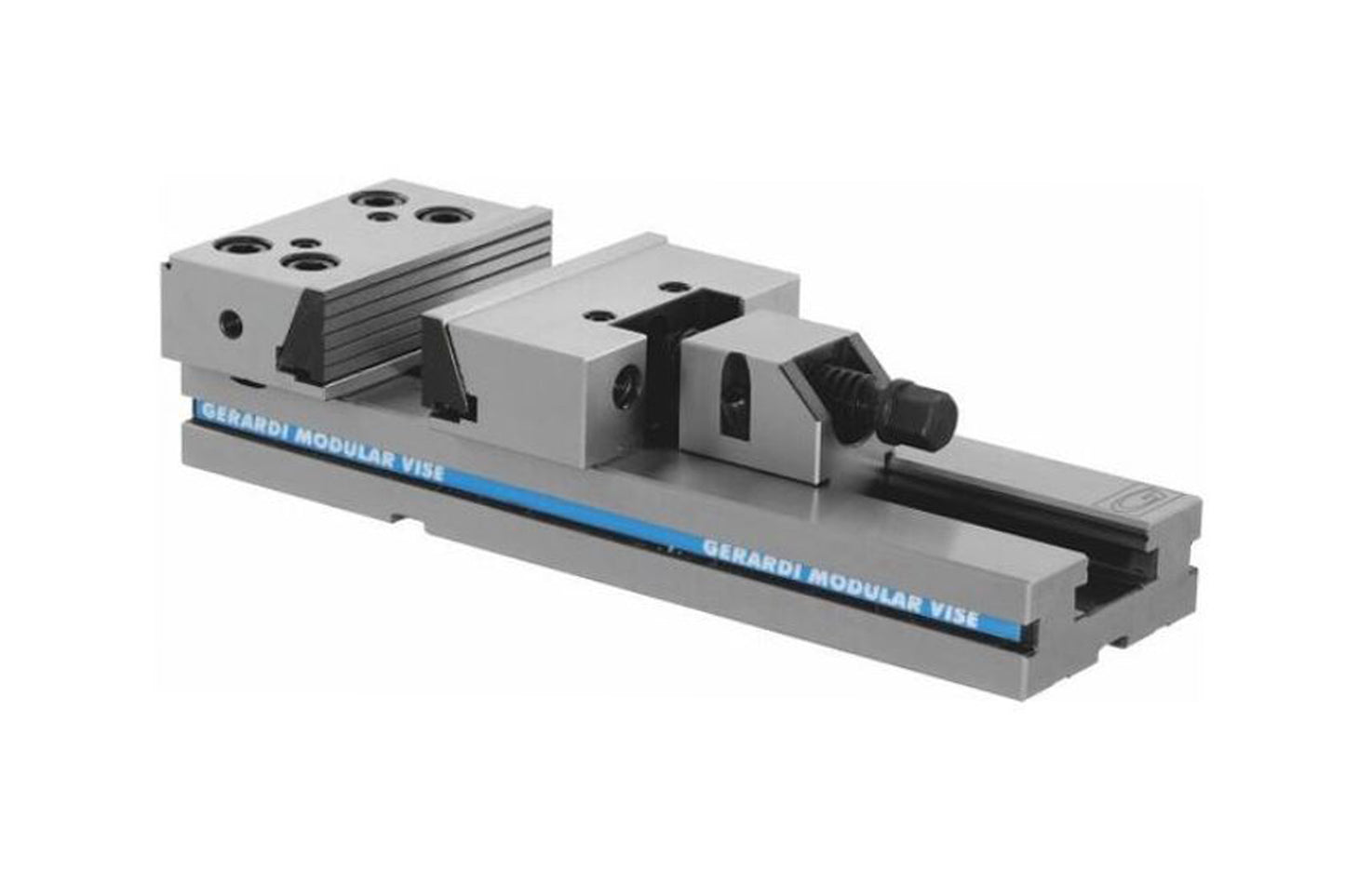

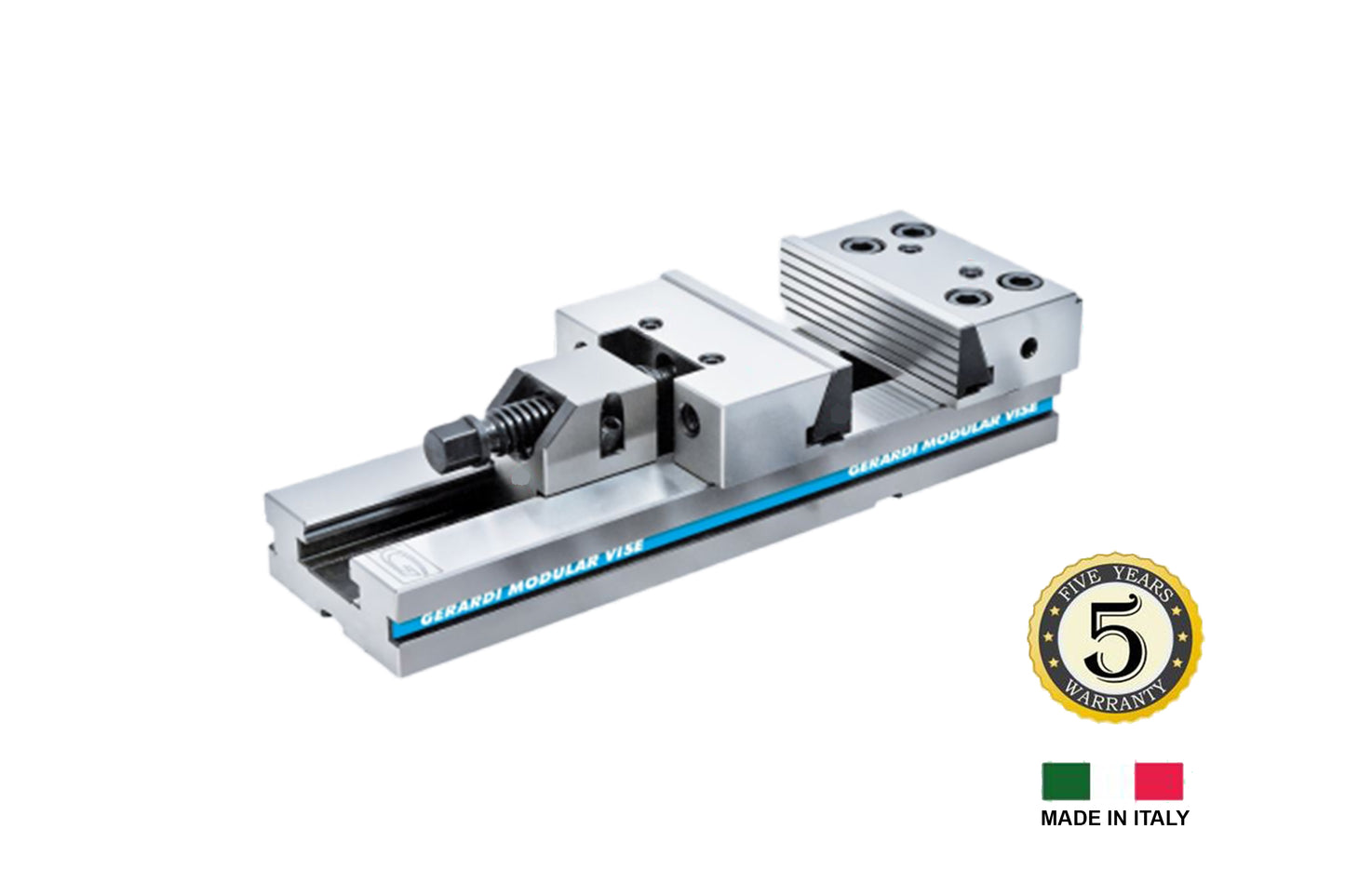

Gerardi Standard Precision Modular Vice with Solid Guided Movable Jaw (Width = 125mm, Opening = 150mm)
High alloy steel, case hardened HRC 60 ±2 has been used in manufacturing this vice in order to give it maximum rigidity, high performances and no wear.
Both Jaws' bodies are built in one solid piece (no slides or key-nuts) in order to guarantee higher rigidity & no bending. Both Jaw plates are manufactured with a pull down angle. This ensures, during the clamping operation, a downward run of the work piece against the vice base (by dragging) and thus a precise and safe clamping!
Part No: 3.02.10000
