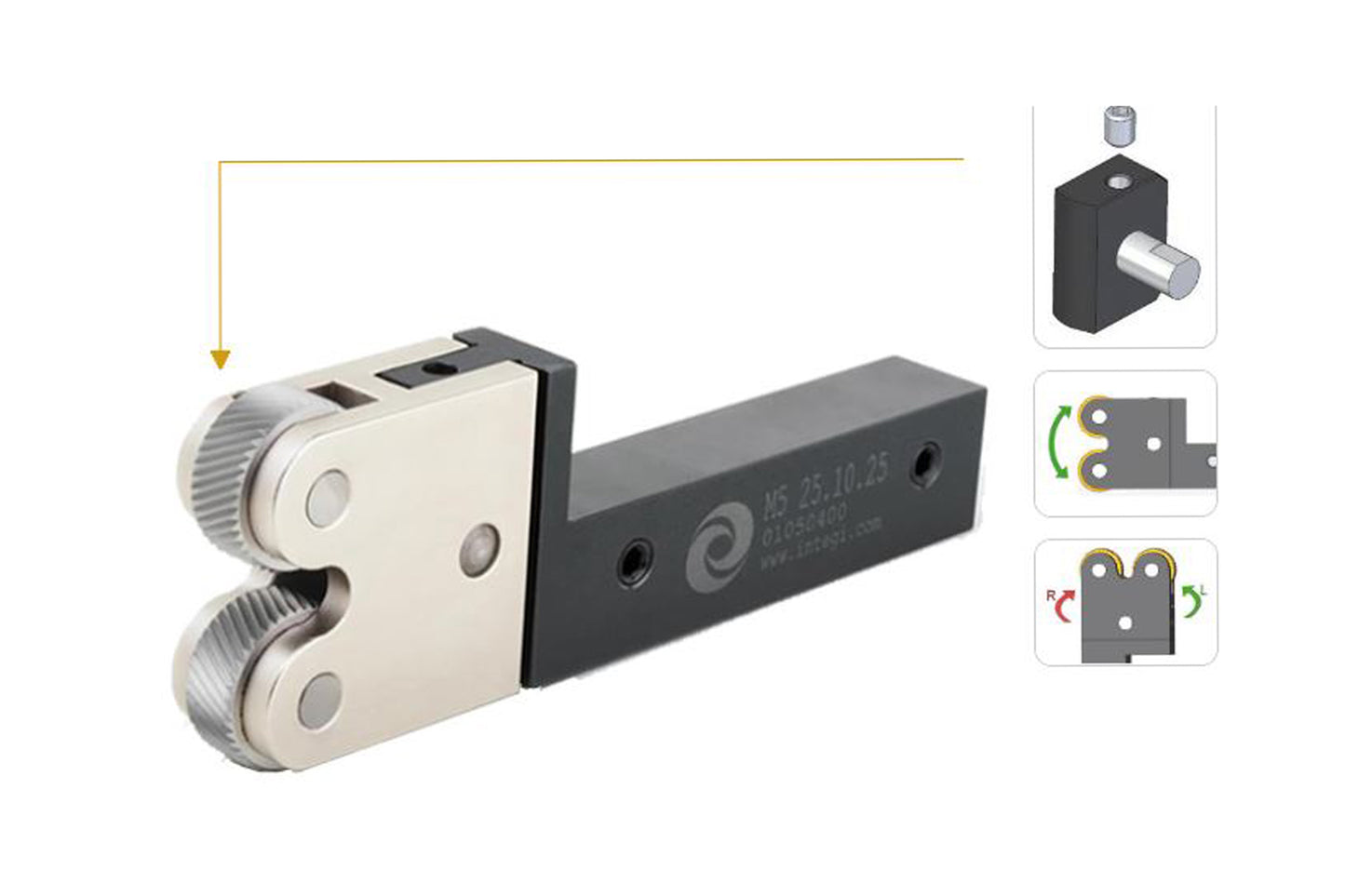

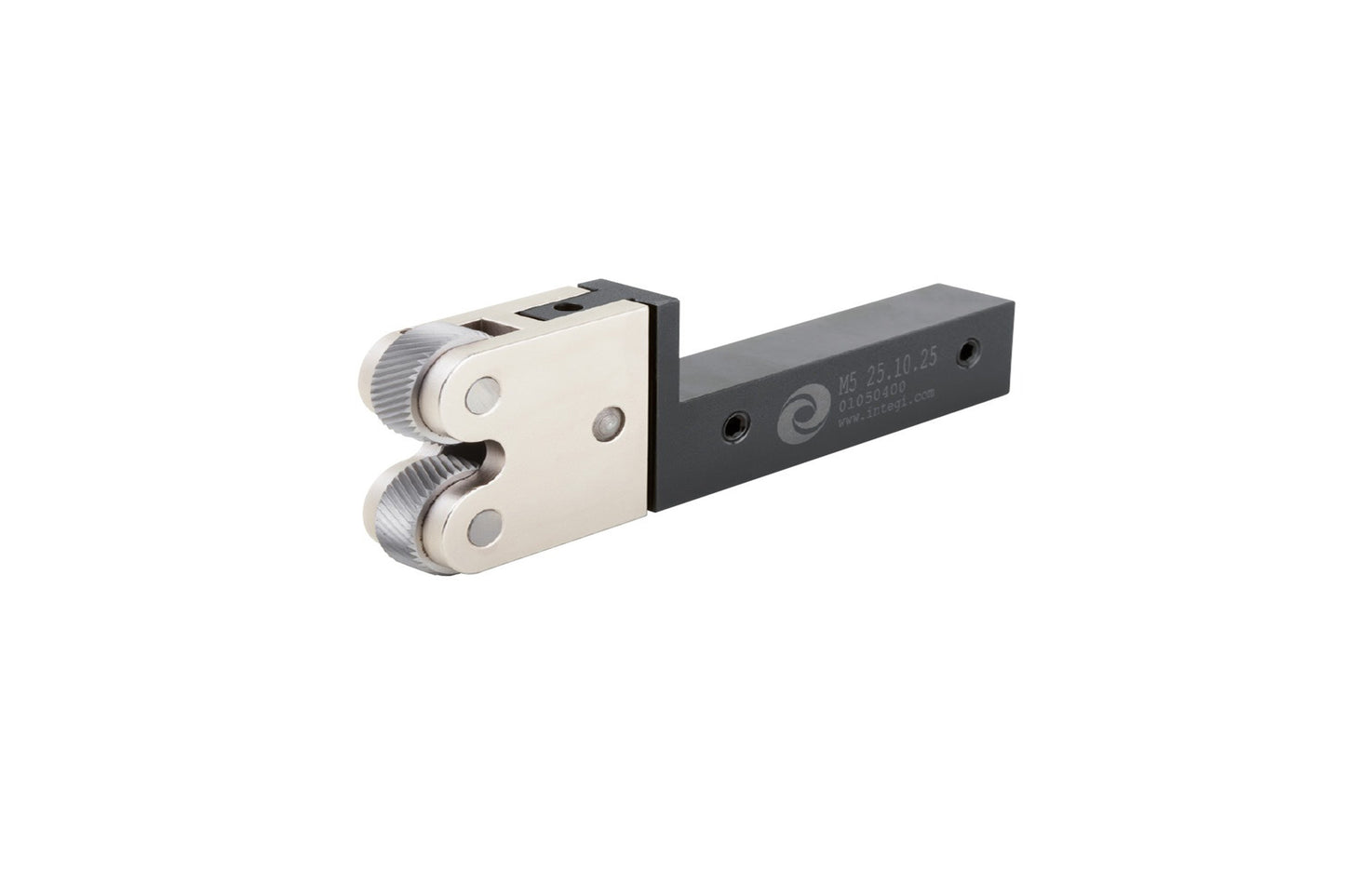

INTEGI FORM KNURLING M5 (Shank Height = 25mm)

Form-Knurling M5 Tool by INTEGI is recommended for RGE type knurling.

Its main features are:

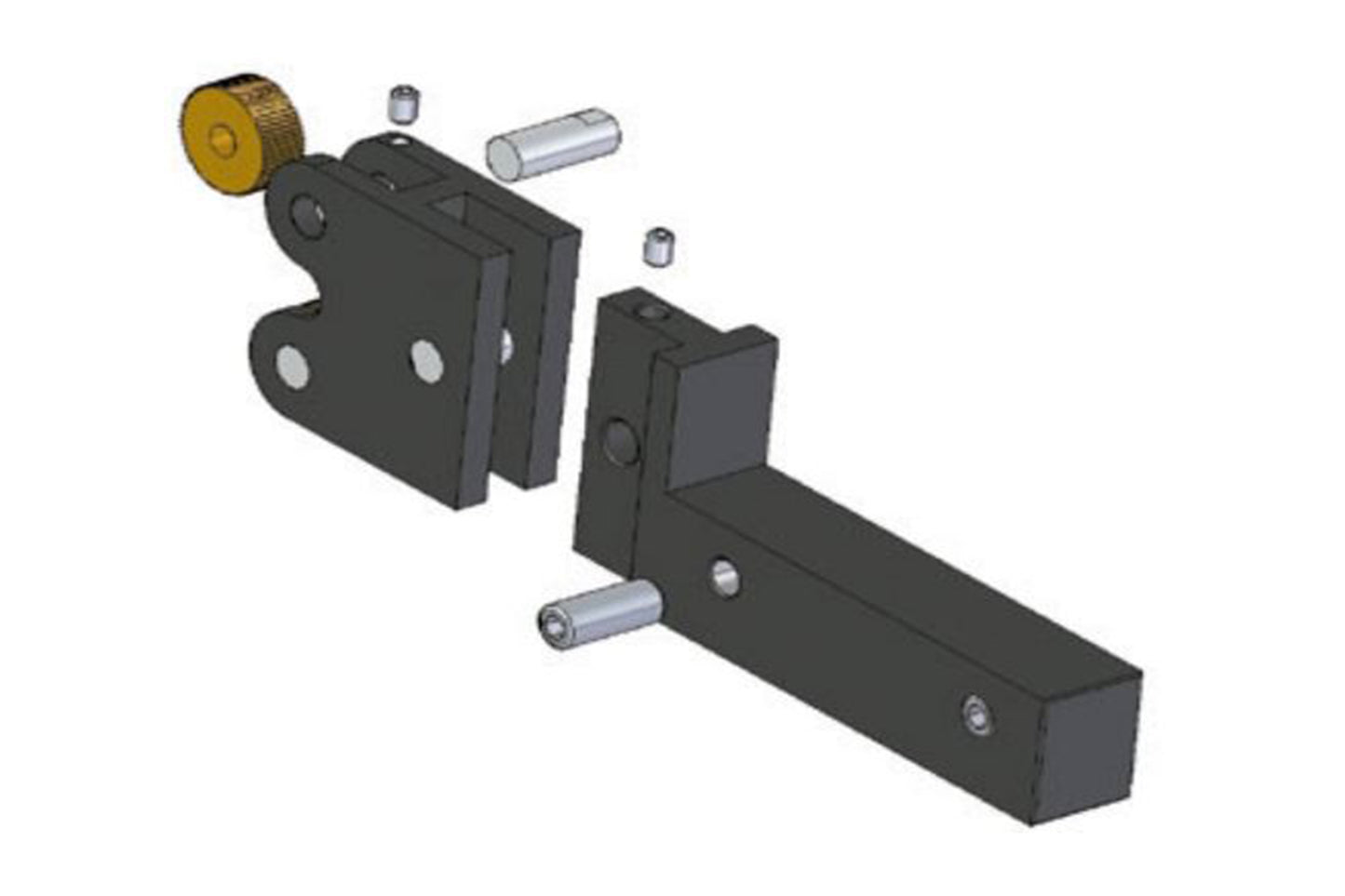

• Pivoting head for knurls self-centering

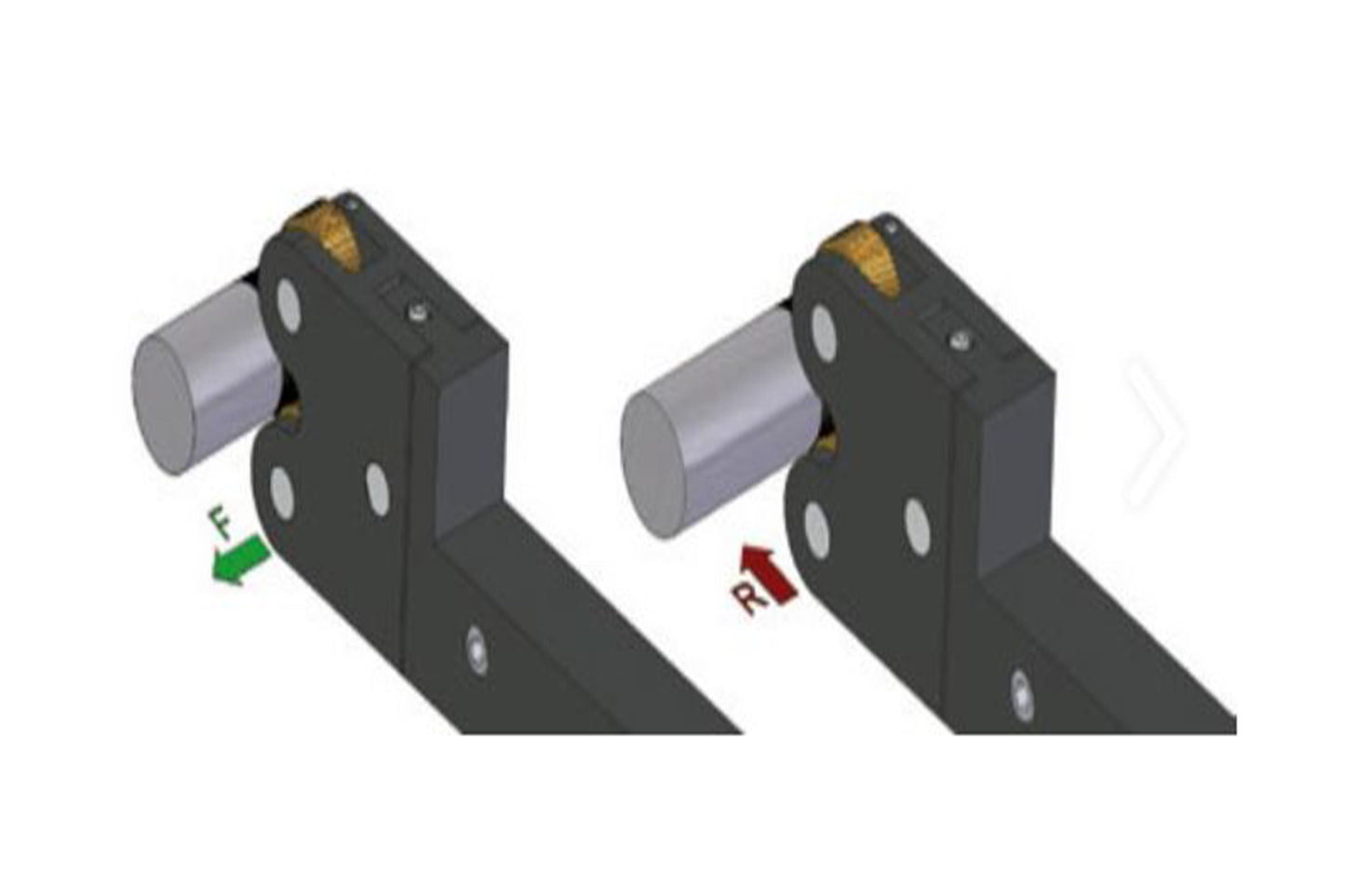

• Tool with reversible head able to fit on left-hand or right-hand lathes
• Carbide pins
• Anti-wearing treatment surface
• Adjustment of tool clearance angle by threaded studs integrated in the shank

Part No: M5 20.08.25

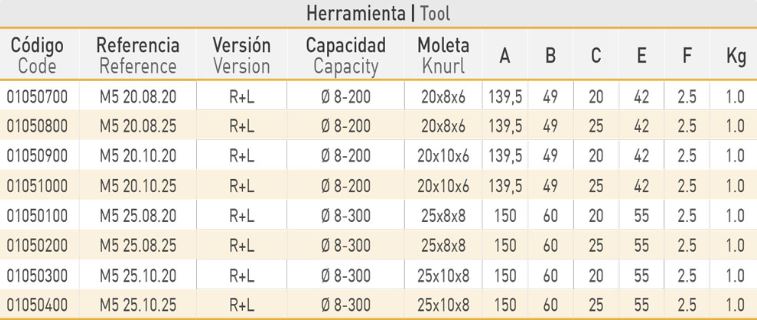

Product Specifications
